How to display the Bad Apple video and Sipeed logo on the Sipeed Longan Nano TFT display.


Operating system used
Windows 10 Pro

Software prerequisites
Visual Studio Code

  • Install the Longan_GD32VF_examples in your PlatformIO project directory:
    Type: cd C:\Users\<user>\Documents\PlatformIO\Projects
    Type: git clone https://github.com/sipeed/Longan_GD32VF_examples

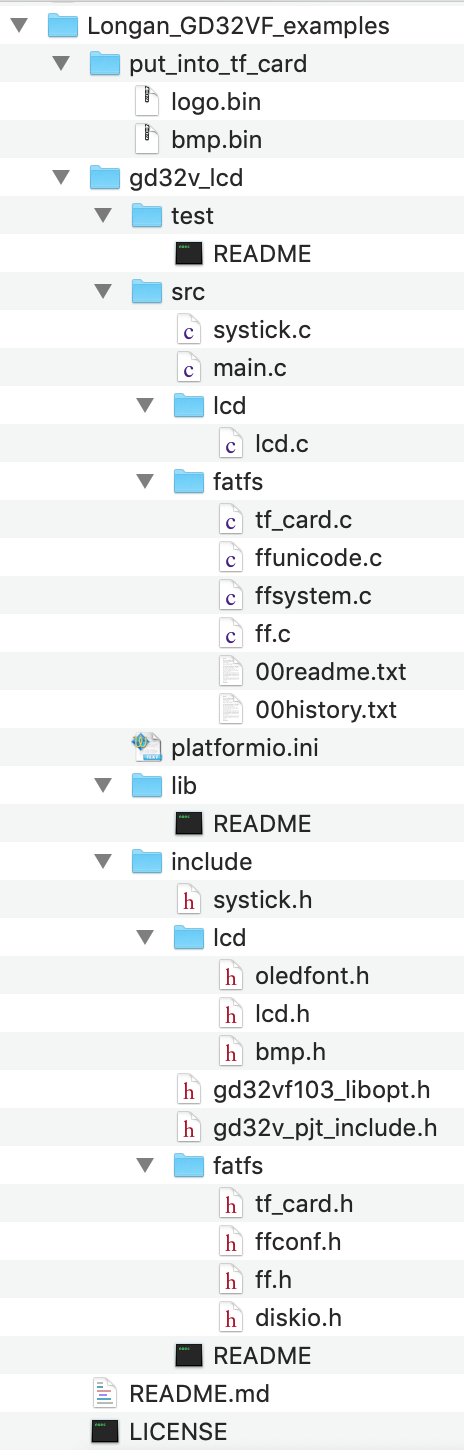

    Longan_GD32VF_examples content

  • Copy the two files bmp.bin (contains Bad Apple animation) and logo.bin (contains Sipeed logo) which can be found at:

    onto a micro SD card and insert the micro SD card into the development board.
    Note : The micro SD card is FAT32 formatted.

    Sipeed Longan Nano 24

    Sipeed Longan Nano 25

  • Select Open Project and select:

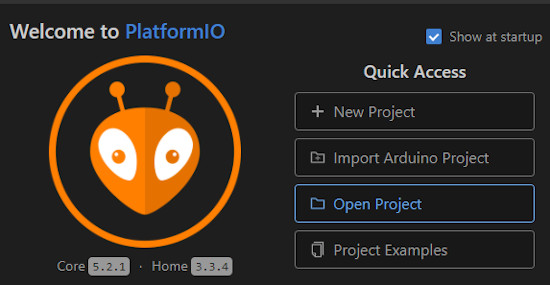

    Select Open Project

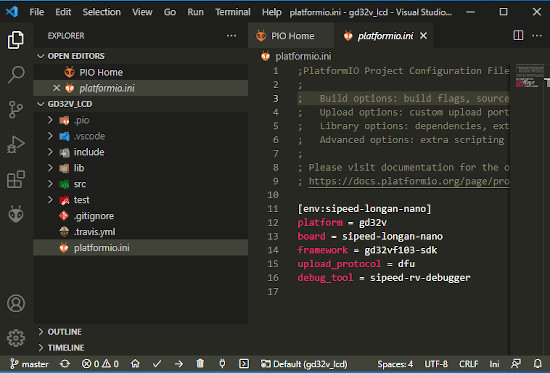

    Project gd32v_lcd project opened in PlatformIO

  • There are several methods to upload the firmware to development board:
    • Method A: Using a USB-A - Mini USB-B cable (upload_protocol = serial), a FTDI FT232RL adapter and PlatformIO to upload the firmware.
    • Method B: Using a USB-A - USB-C cable (upload_protocol not used), and "GD32 Dfu Tool" to upload the firmware.
    • Method C: Using a USB-A - USB-C cable (upload_protocol = sipeed-rv-debugger), the Sipeed RV Debugger Plus and PlatformIO to upload the firmware.

    For method A or B, see tutorial:
    Programming the Sipeed Longan Nano using Visual Code and PlatformIO and upload to development board

    For method C, see tutorial:
    Using Sipeed RV Debugger Plus to upload firmware and to debug code

  • In this tutorial I will be using method C to upload the firmware to the development board.

    Note: In this photo,the TFT display shows the Sipeed logo (logo.bin).
    Of course this photo is made AFTER the firmware is uploaded.
    You should not see anything.

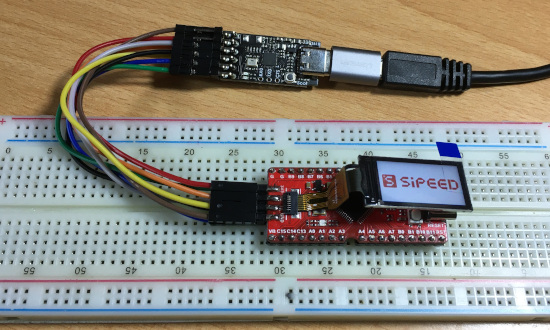

    Sipeed Longan Nano and RV Debugger Plus

  • Change the upload_protocol to sipeed-rv-debugger in the platformio.ini file:

    ;Platform, choose gd32v
    platform = gd32v

    ;Optional gd32vf103-sdk or arduino
    framework = gd32vf103-sdk

    ;Development board
    board = sipeed-longan-nano

    ;Default serial, optional jlink, gd-link, dfu, sipeed-rv-debugger
    upload_protocol = sipeed-rv-debugger

    ;jlink, gd-link, ft2232, sipeed-rv-debugger, altera-usb-blaster, um232h, RV-Link
    debug_tool = sipeed-rv-debugger

  • It is recommended to change the main.c file:


    Change the following line:

    for (int i=0; i<2189;i++)

    This for-loop processes in total 2190 bitmap images, which are stored in the
    Longan_GD32VF_examples\gd32v_lcd\put_into_tf_card\bmp.bin file.
    This bmp.bin file contains exactly 2190 Bad Apple bitmap images.

    If you create your own bmp.bin file you need to update this value or better not to use a fixed value at all.

    The solution is to replace line:

    for (int i=0; i<2189;i++)


    for (int i=0; i<(f_size(&fil) / 256000);i++)

    Note: 256000 = 160 * 80 * 2

  • Build and upload the firmware to the development board.
    First you will see the Sipeed logo (logo.bin) for a few seconds and then the Bad Apple animation (bmp.bin).

    Sipeed logo (logo.bin)

    Sipeed Logo

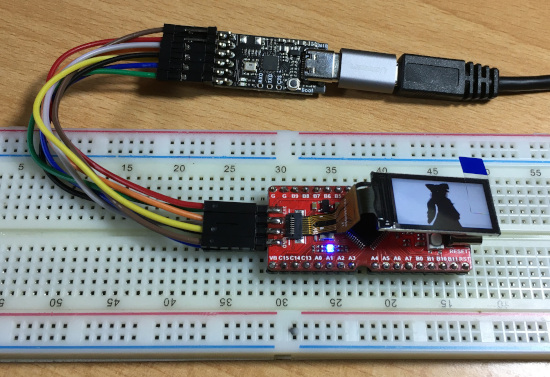

    Bad Apple animation (bmp.bin)

    Bad Apple animatiob

  • A tutorial how to create the two bin files (logo.bin and bmp.bin), see:
    How to create bmp.bin and logo.bin files to be displayed on the Sipeed Logan Nano TFT display
