RISC-V



RISC-V is an open standard instruction set architecture (ISA) based on established reduced instruction set computer (RISC) principles. The RISC-V ISA is provided under open source licenses that do not require fees to use.

More information about RISC-V can be found at:
https://riscv.org/








How to build RISC-V OpenOCD on macOS.



Information
The Open On-Chip Debugger (OpenOCD) aims to provide debugging, in-system programming and boundary-scan testing for embedded target devices. It does so with the assistance of a debug adapter, which is a small hardware module which helps provide the right kind of electrical signaling to the target being debugged. These are required since the debug host (on which OpenOCD runs) won’t usually have native support for such signaling, or the connector needed to hook up to the target.

The OpenOCD User's Guide: https://openocd.org/doc/pdf/openocd.pdf

Operating system used
macOS Monterey

Software prerequisites
Homebrew

Procedure
  • In this tutorial I will demonstrate how to build the RISC-V OpenOCD on macOS (Monterey).

  • First check which shell your Mac is using:
    Type: echo $0

    If the shell is not bash, change the default shell to bash by running the following command:

    Type: chsh -s /bin/bash

  • Installing the Mac OSX Command Line Tools, type:
    xcode-select --install

  • The following tools are required:
    autoconf, automake, pkg-config, libtool and texinfo.

    To check if the tool is installed:
    which <tool> These are my installed tool information:

    • autoconf
      Automatic configure script builder

      which autoconf
      /opt/local/bin/autoconf

      autoconf --version
      autoconf (GNU Autoconf) 2.71

      If not found, install this tool: brew install autoconf

    • automake
      Tool for generating GNU Standards-compliant Makefiles

      which automake
      /opt/local/bin/automake

      automake --version
      automake (GNU automake) 1.16.3

      If not found, install this tool: brew install automake

    • pkg-config
      pkg-config is a helper tool used when compiling applications and libraries.

      which pkg-config
      /opt/local/bin/pkg-config

      pkg-config --version
      0.29.2

      If not found, install this tool: brew install pkg-config

    • libtool
      Generic library support script

      which libtool
      /usr/local/opt/libtool/libexec/gnubin/libtool

      libtool --version
      GNU gperf 3.0.3

      This tool is installed with the Mac OSX Command Line Tools.

    • texinfo
      Official documentation format of the GNU project

      brew info texinfo
      texinfo: stable 6.8 (bottled) [keg-only]
      Official documentation format of the GNU project
      https://www.gnu.org/software/texinfo/
      /usr/local/Cellar/texinfo/6.8 (409 files, 7.6MB)

      texinfo is keg-only, which means it was not symlinked into /usr/local,
      because macOS already provides this software and installing another
      version in parallel can cause all kinds of trouble.

      If you need to have texinfo first in your PATH, run:
      echo 'export PATH="/usr/local/opt/texinfo/bin:$PATH"' >> /Users/robertlie/.bash_profile


      If not found, install this tool: brew install texinfo

      Update PATH in .bash_profile
      Type: cd ~
      Type: nano .bash_profile
      Type: export PATH=/usr/local/opt/texinfo/bin:$PATH

  • Create directories ~/riscv_openocd
    Type: cd ~
    Type: mkdir riscv_openocd
    Type: cd riscv_openocd
    Type: mkdir install

  • Clone riscv-openocd.git:
    Type: git clone --recursive https://github.com/riscv/riscv-openocd.git
    Type: cd riscv-openocd
    To show the last commit on this branch, type: git log

    commit cc0ecfb6d5b939bd109ea84b07b5eab3cdf80316 (HEAD -> riscv, origin/riscv, origin/HEAD)
    Merge: 54c951d7f d27d66bc1
    Author: Tim Newsome <[email protected]>
    Date: Tue Dec 28 10:45:40 2021 -0800


  • Create the Makefile.
    Type: ./bootstrap nosubmodule
    Type: ./configure --prefix=`pwd`/../install

    Output: build_riscv_openocd.txt

    Note:
    The ~/riscv_openocd/riscv-openocd/configure tool is a shell script.
    More information about the many configure options, type: ./configure --help
    See also: configure_riscv_openocd_help.txt

  • Build OpenOCD, it will take approximately 1 minute depending on your machine. There are no errors.
    Type: make -j`nproc`

  • Install OpenOCD at ~/riscv_openocd/install.
    Type: cd ~/riscv_openocd/riscv-openocd
    Type: make install

    This is what you see in the install directory:

    RISC-V OpenOCD installed

  • Show OpenOCD help.
    Type: cd ~/riscv_openocd/riscv-openocd/install/bin
    Type: ./openocd --help
    See: riscv_openocd_help.txt

  • Show OpenOCD version.
    Type: cd ~/riscv_openocd/riscv-openocd/install/bin
    Type: ./openocd --version

    Open On-Chip Debugger 0.11.0+dev-02215-gcc0ecfb6d (2022-01-19-15:17)
    Licensed under GNU GPL v2
    For bug reports, read
    http://openocd.org/doc/doxygen/bugs.html


  • Update PATH in .bash_profile
    Type: cd ~
    Type: nano .bash_profile
    Type: export PATH=$PATH:/Users/robertlie/riscv_openocd/install/bin

  • I modified sipeed-rv-debugger.cfg.
    This configuration file was used in tutorial:
    Using Sipeed RV Debugger Plus to upload firmware and to debug code

    Download the modified configuration file: sipeed-rv-debugger2.cfg and put this file into folder:
    /Users/robertlie/riscv_openocd/install/bin

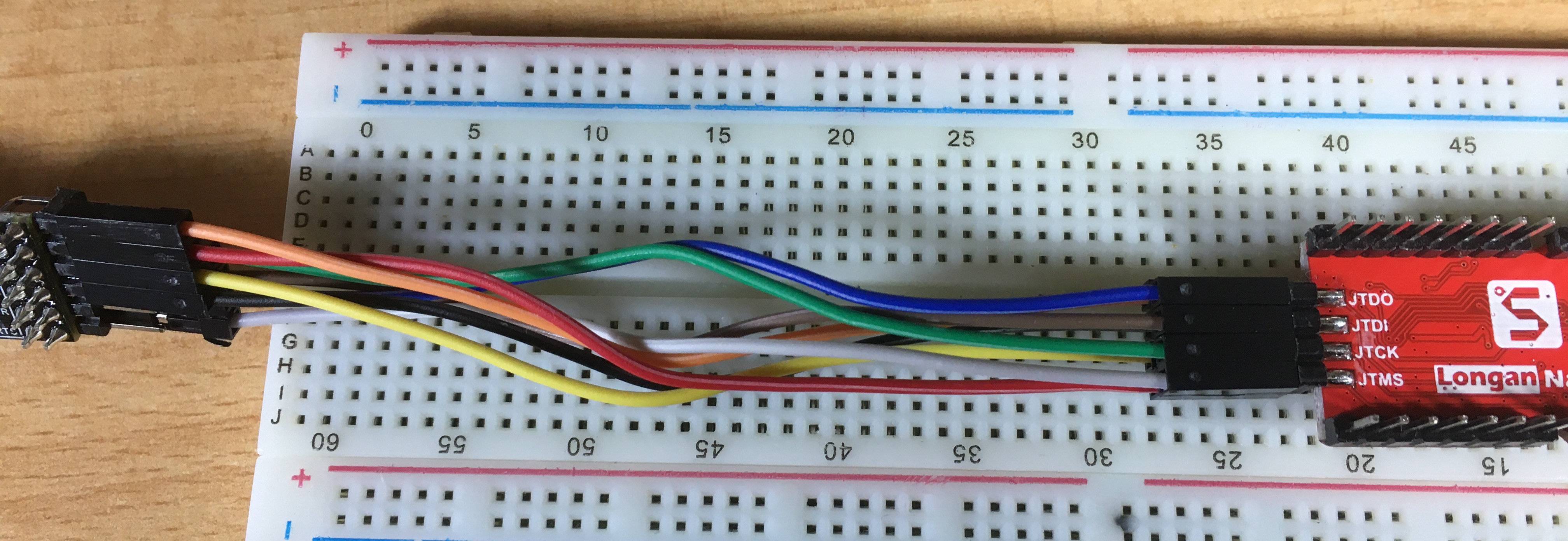

  • Connect the Sipeed RV Debugger Plus (on the left) to the Sipeed Longan Nano Development Board (on the right) using 8 female-female jumper wires (12 cm long).
    Connect the USB cable to my macbook.

    More information about:
    Sipeed Longan GD32VF103CBT6 MCU Nano RISC-V Development Board
    Sipeed RV Debugger Plus

    Sipeed RV Debugger Plus and Sipeed Longan Nano 1

    Sipeed RV Debugger Plus and Sipeed Longan Nano 2

    Sipeed RV Debugger Plus and Sipeed Longan Nano 3

    Sipeed RV Debugger Plus and Sipeed Longan Nano 4

    Sipeed RV Debugger Plus and Sipeed Longan Nano 5

    Connections required to upload firmware to the Sipeed Longan Nano Development Board

    Sipeed RV Debugger Plus Sipeed Longan Nano Development Board
    GND GND
    3V3 3V3
    TX RO
    RX TO
    DTR (Not connected) -
    RTS (Not connected) -

    The Sipeed RV Debugger Plus provides 3V3 to the Sipeed Longan Nano Development Board. If the provided 3V3 (by Sipeed RV Debugger Plus) is not sufficient when you connect many other hardware components to the development board, disconnect the 3V3 jumper wire and connect the USB A - USB C cable to the Sipeed Longan Nano Development Board as its power source. Keep the ground jumper wire connected.

    Connections required to debug code

    Sipeed RV Debugger Plus Sipeed Longan Nano Development Board
    GND (Not connected) -
    5V (Not connected) -
    TCK JTCK
    TDI JTDI
    TDO JTDO
    TMS JTMS

  • Check if OpenOCD detects the Sipeed Longan Nano board.

    Type: cd ~
    Type: openocd -f ~/riscv_openocd/install/bin/sipeed-rv-debugger2.cfg

    Open On-Chip Debugger 0.11.0+dev-02215-gcc0ecfb6d (2022-01-19-15:17)
    Licensed under GNU GPL v2
    For bug reports, read
    http://openocd.org/doc/doxygen/bugs.html
    gd32vf103.cpu
    Info : Listening on port 6666 for tcl connections
    Info : Listening on port 4444 for telnet connections
    Info : clock speed 1000 kHz
    Info : JTAG tap: gd32vf103.cpu tap/device found: 0x1000563d
    (mfg: 0x31e (Andes Technology Corporation), part: 0x0005, ver: 0x1)
    Info : JTAG tap: gd32vf103.bs tap/device found: 0x790007a3
    (mfg: 0x3d1 (GigaDevice Semiconductor (Beijing) Inc), part: 0x9000, ver: 0x7)
    Info : [gd32vf103.cpu] datacount=4 progbufsize=2
    Info : Examined RISC-V core; found 1 harts
    Info : hart 0: XLEN=32, misa=0x40901105
    [gd32vf103.cpu] Target successfully examined.
    Info : starting gdb server for gd32vf103.cpu on 3333
    Info : Listening on port 3333 for gdb connections


    Note 1:
    If the Sipeed Longan Nano is not detected:

    • Press BOOT key and keep it pressed.
    • Shortly press and immediately release the RESET button.
    • Then release the BOOT button.

    Note 2:
    If you get the following error:
    Error: couldn't bind tcl to socket on port 6666: Address already in use

    Report a list of all open files and the processes that opened them.
    Type: lsof -i :6666
    Write down the pid_number.
    Type: kill -9 pid_number

  • To stop OpenOCD, press: CTRL + C
