RISC-V

Unofficial MacOS PlatformIO support for Sipeed Longan Nano (gd32v).

• Create folder.
  Type: mkdir ~/repositories


• Clone repository.
  Type: cd ~/repositories
  Type: git clone https://github.com/yesitsme007/platform-gd32v-mac-unofficial


• Download and unpack these files.
  https://github.com/yesitsme007/test1/releases/download/0.0.1/tool-gd32vflash-darwin_x86_64-0.1.0-unofficial.tar.gz

  https://github.com/yesitsme007/test1/releases/download/0.0.1/tool-openocd-riscv-darwin_x86_64-0.9.20191123-unofficial.tar.gz

  https://github.com/yesitsme007/test1/releases/download/0.0.1/riscv64-unknown-elf-gcc-8.3.0-2019.08.0-x86_64-apple-darwin.tar.gz


• Copy these 3 unpacked folders to: /Users/<user>/.platformio/packages


• Rename these folders:
  Type: mv riscv64-unknown-elf-gcc-8.3.0-2019.08.0-x86_64-apple-darwin toolchain-gd32v-mac

  Type: mv tool-gd32vflash-darwin_x86_64-0.1.0-unofficial tool-gd32vflash-mac

  Type: mv tool-openocd-riscv-darwin_x86_64-0.9.20191123-unofficial tool-openocd-gd32v-mac

  See the package.json files how to rename these folders.


• Start Visual Studio Code and open a PlatformIO Core Terminal.


• Install the gd32v platform.
  Type: pio platform install file:///Users/<user>/repositories/platform-gd32v-mac-unofficial

  Note:
  To uninstall, type: pio platform uninstall gd32v-mac-unofficial


• Create a PlatformIO projectc.
  Open a PlatformIO Core Terminal.
  Type: cd /Users/<user>/Documents/PlatformIO/Projects
  Type: mkdir myproject
  Type: pio init -d myproject -b sipeed-longan-nano --project-option "framework=gd32vf103-sdk" --project-option "upload_protocol=dfu"

  Output:
  Project has been successfully initialized!

  Note 1:
  If you want to use an Arduino framework, use: --project-option "framework=arduino"

  Note 2:
  Useful commands:
  `pio run` - process/build project from the current directory
  `pio run --target upload` or `pio run -t upload` - upload firmware to a target
  `pio run --target clean` - clean project (remove compiled files)
  `pio run --help` - additional information


• In IDE, PlatformIO: Quick Access
  Select Project & Configuration
  Select Add Existing
  Select /Users/<user>/Documents/PlatformIO/Projects/myproject
  Restart IDE


• Copy c en h files from examples to @@@


• Install Extensions: @@@


• Create package tool-gd32vflash-mac.
  • Create folder tool-gd32vflash-mac.
    Type: mkdir ~/tool-gd32vflash-mac


  • Goto https://sourceforge.net/projects/dfu-util/files/

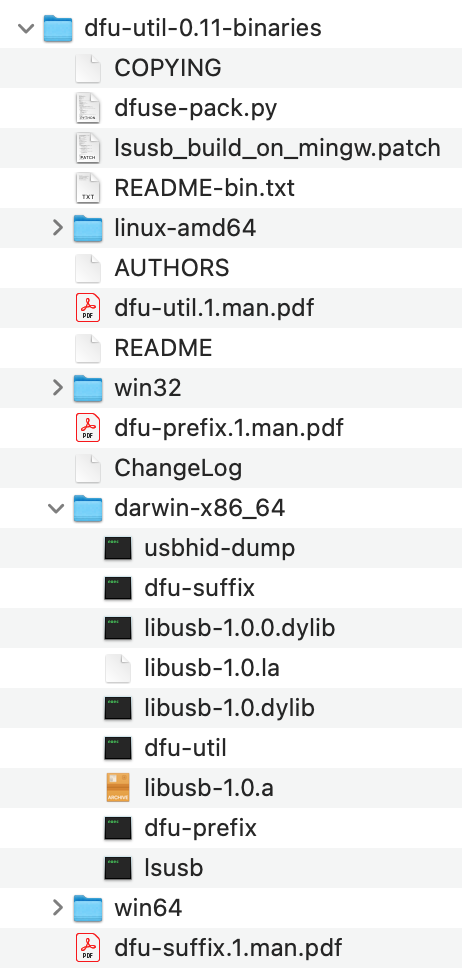

    Download and unpack the latest version, in my case: dfu-util-0.11-binaries.tar.xz
    Copy the darwin-x86_64 files: dfu-prefix, dfu-suffix and dfu-util
    to folder ~/tool-gd32vflash-mac




  • Goto https://sourceforge.net/projects/stm32flash/files/

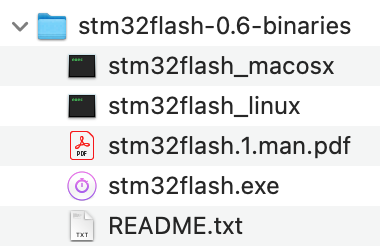

    Download and unpack the latest version, in my case: stm32flash-0.6-binaries.zip
    Rename file stm32flash_macosx to stm32flash and copy file stm32flash
    to folder ~/tool-gd32vflash-mac




  • Create package.json.
    @@@



• Create package tool-openocd-gd32v-mac.
  • Create folder tool-openocd-gd32v-mac.
    Type: mkdir ~/tool-openocd-gd32v-mac


  • Goto https://github.com/riscv/riscv-openocd



  • Create package.json.
    @@@



• Goto https://github.com/riscv-mcu/riscv-gnu-toolchain
  Download and unpack: riscv64-unknown-elf-toolchain-10.2.0-2020.12.8-x86_64-apple-darwin.tar.gz (https://www.sifive.com/software)
  Copy content to folder /Users/<user>/.platformio/packages/toolchain-gd32v-mac


• Blabla
